Induction heating

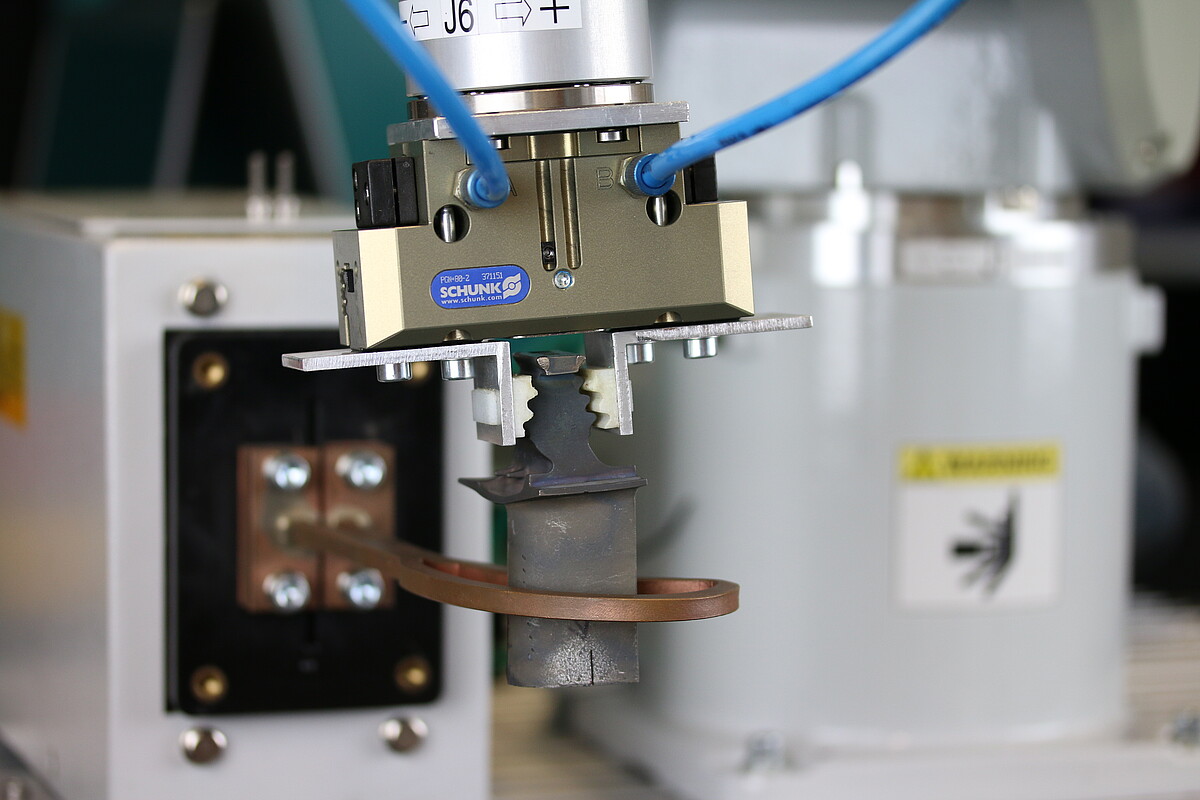

The AXIO HF generator for inductive heating processes and thermographic surface crack detection of components consists of a power supply unit and an outer circuit. The power supply unit and the outer circuit are water-cooled and are located in an aluminum housing. The wide frequency range and large power adjustment range enable the optimum operating frequency for the respective process. The outer circuit can be equipped with induction coils individually adapted to the respective application.

The AXIO HF generator for inductive heating processes and thermographic surface crack detection of components consists of a power supply unit and an outer circuit. The power supply unit and the outer circuit are water-cooled and are located in an aluminum housing. The wide frequency range and large power adjustment range enable the optimum operating frequency for the respective process. The outer circuit can be equipped with induction coils individually adapted to the respective application.

Technichal Data

HF generator  AXIO, Trumpf Hüttinger GmbH + Co. KG
Output power 10 kW
Output frequency 50 - 450 kHz at 35 A
50 - 800 kHz at 17.5 A
Output current 35 A
Interfaces D/A interface 37-pin Sub-D, RS 232, Profibus, CANopen / DeviceNet
Transformation ratio 16:1
output current 560 A
max. output voltage 1500 V
